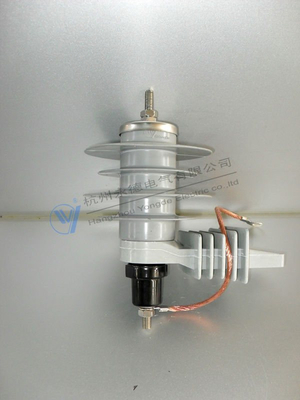

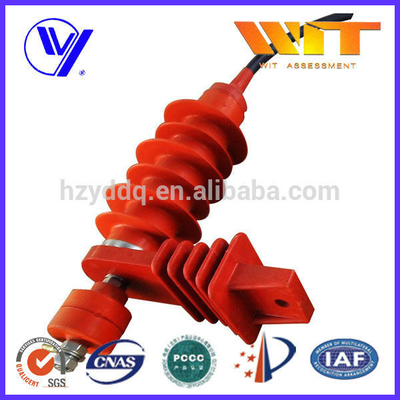

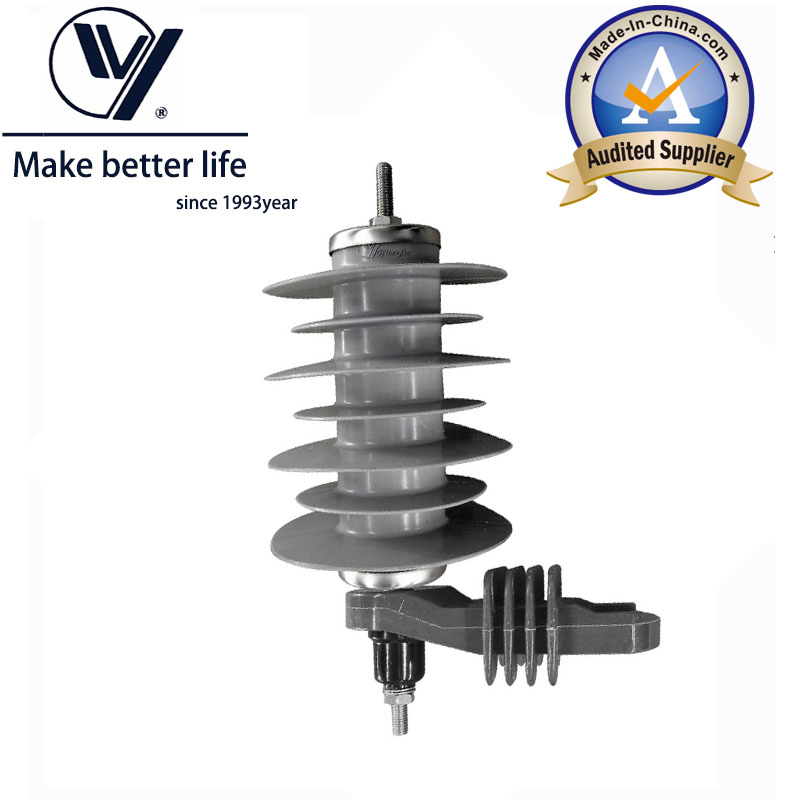

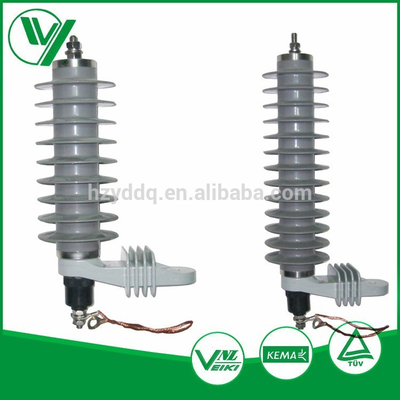

18kV 10kA Zinc Oxide Surge Arrester for Substation

MOQ:	1
Price:	1

Detail Information

Product Description

Detail Information

Certification:

ISO9001, Kema

Model NO.:

YH10W5-18

Installation Type:

Tandem Arrester

Voltage Rating:

18KV

Shed Diameter:

138/108

Height:

194mm

Gross Weight:

2.1kg

Creepage Distance:

596mm

Long Duration Current:

400A

Lightning Impulse:

95/150KV

Material:

ZnO

Operating Temperature:

-40 To +40 Degree

Altitude Limit:

<1000m

Frequency Range:

48HZ To 62HZ

Max Wind Speed:

35m/s

Earthquake Intensity:

7 Degree

Highlight:

18kV zinc oxide surge arrester

substation lightning arrester 10kA

zinc oxide surge protector substation

Product Description

Medium Voltage 18kv 10ka Composite Zinc Oxide Surge Arrester

Product Specifications

Attribute	Value
Model NO.	YH10W5-18
Installation	Tandem Arrester
Application	Substation
Size	Medium
Operation Voltage	High Voltage
Shape	Spiral
Material	ZnO
Brand	Yongde
Creepage Distance	596mm
Transport Package	Carton
Specification	IEC60099-4
Trademark	YONG′DE
Origin	China
HS Code	85354000
Production Capacity	50000PCE Per Year

Technical Specifications

Voltage: 18KV
Shed diameter: 138/108
Height: 194mm
Gross weight: 2.1kg
Creepage distance: 596mm
Long duration current impulse: 400A
Lightning impulse withstand: 95/150KV

Working Conditions

Environment temperature: -40°C to +40°C
Altitude: <1000m
Rated frequency: 48Hz to 62Hz
Power frequency voltage should not exceed continuous running voltage
Maximum wind speed: <35m/s
Earthquake intensity: <7 degree
Special requirements for contamination areas must be noted in advance
