YH10W-36 Surge Arrester for Substation Lightning Protection

MOQ:	1
Price:	40

Detail Information

Product Description

Detail Information

Rated Voltage:

36 KV

MOCV:

29 KV

Nominal Current:

10 KV

Steep Impulse Residual:

106 KV At 5kA

Lightning Impulse Residual:

98 KV At 5kA

Switching Impulse Residual:

75 KV At 1kA

DC Reference Voltage:

51 KV At 1mA

Line Discharge Level:

Long Duration Current:

400 A At 2mS

High Current Impulse:

100 KA At 4/10µS

Lightning Withstand:

200 KV

Power Frequency Withstand:

70 KV (dry/wet)

0.1S TOV:

43.2 KV

1S TOV:

41.4 KV

10S TOV:

39.6 KV

Highlight:

substation surge arrester with warranty

lightning protection arrester for substation

YH10W-36 surge arrester

Product Description

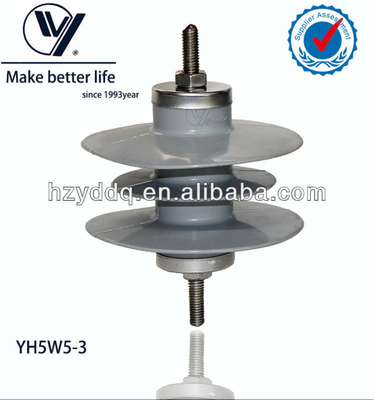

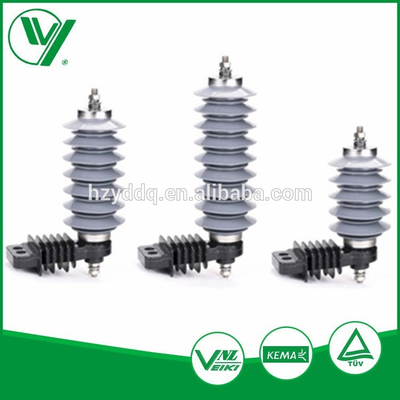

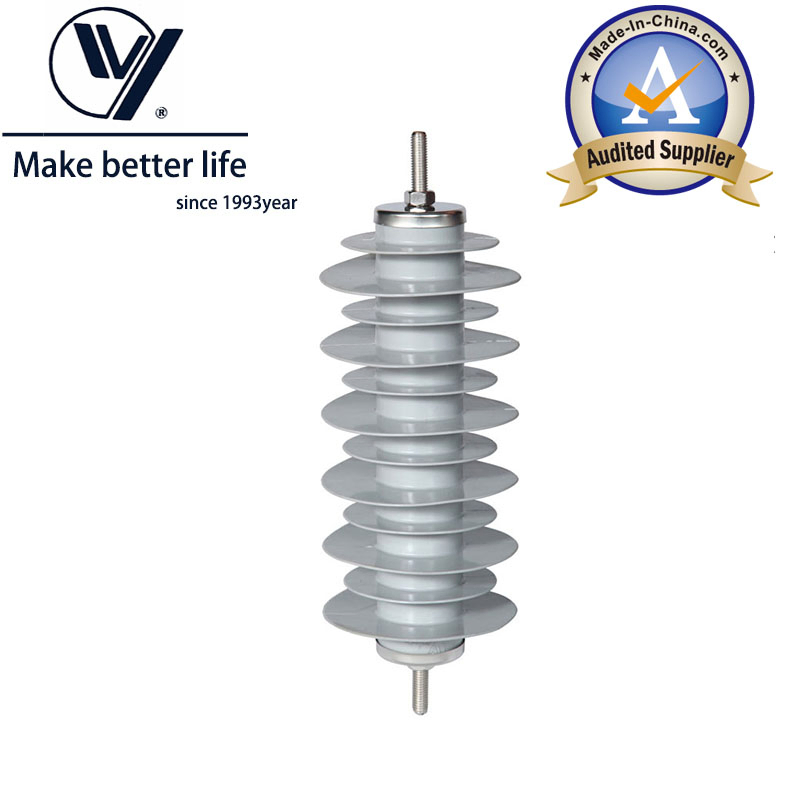

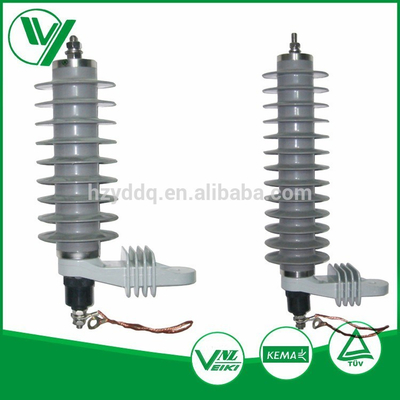

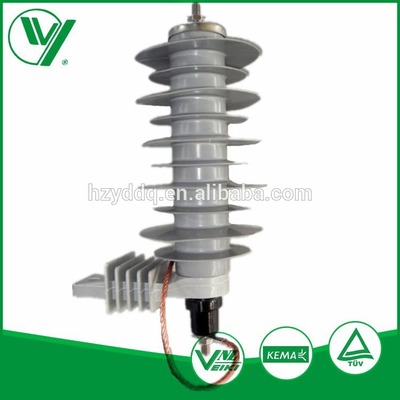

Competitive High Quality Surge Arrester (YH10W-36)

Product Specifications

Attribute	Value
Model NO.	YH10W-36
Specification	SGS
Trademark	YONG′DE
Origin	China
HS Code	85354000
Production Capacity	5000 Pieces Per Month

Technical Specifications

Type	YH10W5-36/98
Rated voltage (kV)	36
MOCV (kV)	29
Nominal Current (kV)	10
Residual voltage of steep impulse at 5kA (kV)	106
8/20µS Residual voltage of lightning impulse current at 5kA (kV)	98
Residual voltage of switching impulse current at 1kA (kV)	75
1mA D.C reference voltage (kV)	51
Line discharge level	1
2mS long duration impulse current (A)	400
Material employed in series non-linear resistor	Zinc Oxide

Surge Arrester Working Conditions

Low Voltage Lightning Arrester
Working conditions:
- Environment temperature: -40°C to +40°C
- Altitude: <1000m
- 48Hz < Rated frequency < 62Hz
- Power frequency voltage should not exceed continuous running voltage
- Maximum wind speed should be less than 35m/s
- Earthquake intensity should be less than 7 degree
- If used in contamination area, should be noted in advance
