110kV Polymer Housed Surge Arrester with Leave Device for Substation

MOQ:	10
Price:	1

Detail Information

Certification:

ISO9001

Model NO.:

YH10CX5-110

Installation Type:

Parallel Arrester

Material:

ZnO

Line Class:

Voltage:

126

Shape:

Cuboid

Breaking Capacity:

High Voltage Circuit Breakers

Arc-Extinguishing Medium:

Air

Flow Capacity:

100kA

CTI Level:

Creepage Distance:

III Level Heavy Pollution

Nominal System Voltage:

110

Rated Voltage:

100

Continuous Operating Voltage:

High Current Impulse:

4/10 μ S

Highlight:

Product Description

110kV Polymer Housed Surge Arrester with Leave Device

Product Specifications

Attribute	Value
Model NO.	YH10CX5-110
Installation	Parallel Arrester
Application	Substation
Size	Medium
Operation Voltage	High Voltage
Material	ZnO
Brand	Yongde
Breaking Capacity	High Voltage Circuit Breakers
Voltage	126
Specification	IEC60099-4
Production Capacity	5000PCS/Year

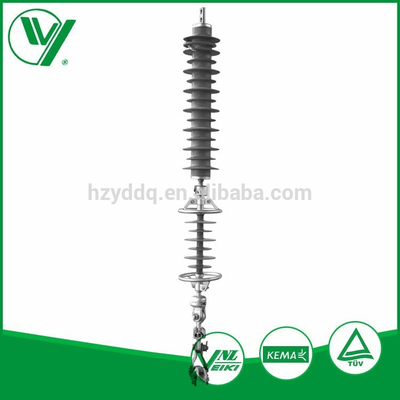

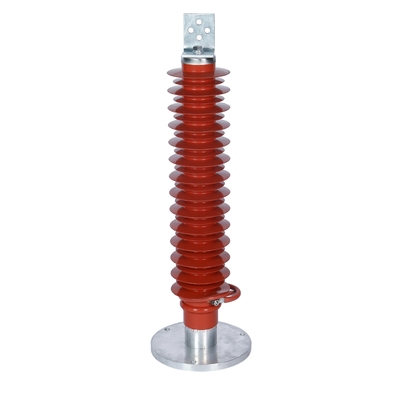

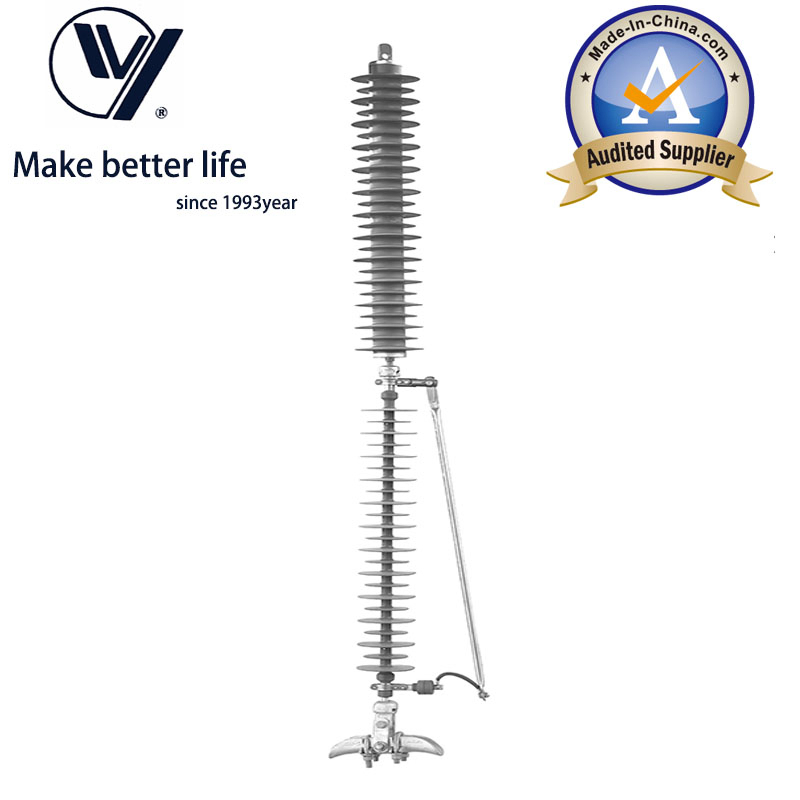

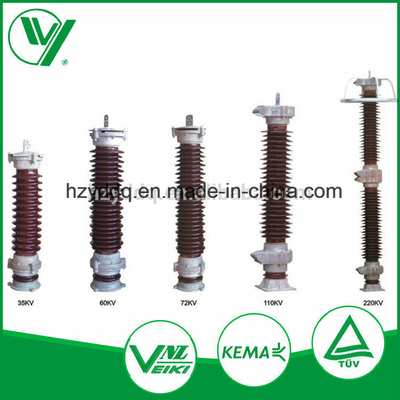

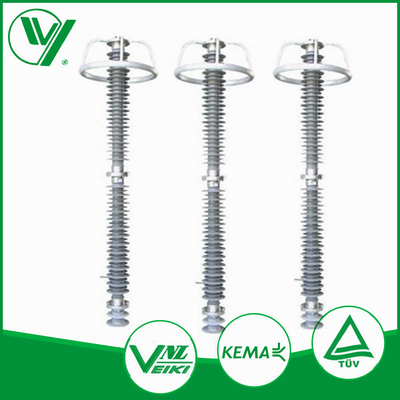

Product Images

Key Features

Smooth volt-second characteristic curve for optimal performance
Excellent insulation coordination and protective characteristics
High electrical frequency withstand voltage in discharging gap
Tube-like structure with side injection hole for better performance
Overall injection molding polymer housing with no internal air gaps
Independent encapsulation of core columns for superior air-proof performance
Side injection hole with pressure release function
Core component zinc oxide varistor with 100kA flow capacity
Excellent anti-fatigue behavior with Polymer Housed products
CTI level of six with creepage distance meeting III level heavy pollution requirements

Technical Specifications
