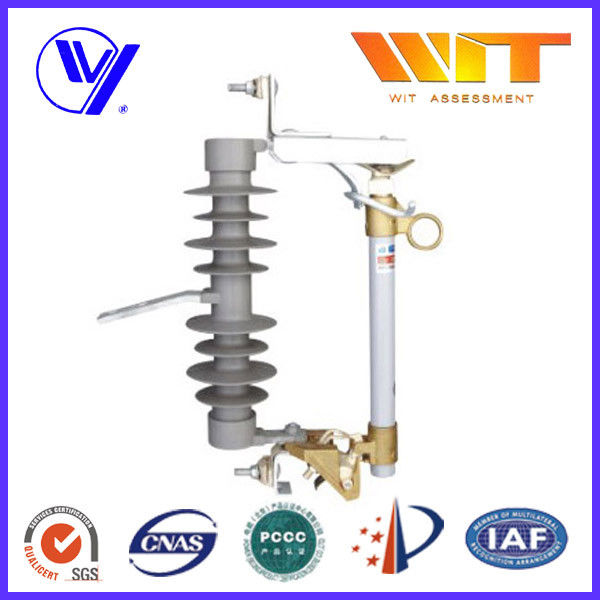

15KV - 27KV Composite Polymer Dropout Fuse Cutout Silicon Rubber Material

15KV - 27KV Composite Polymer Dropout Fuse Cutout Silicon Rubber Material

15KV - 27KV Composite Polymer Dropout Fuse Cutout Silicon Rubber Material

Brand Name:	YONGDE
Model Number:	HPD
MOQ:	1pcs
Price:	negotiation
Payment Terms:	T/T or western Union or L/C or PayPal, MoneyGram, D/P, D/A
Supply Ability:	10,000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang,China(Mainland)

Certification:

ISO9001

Product Model:

Fuse Cutout

Type:

HPD

Breaking Capacity:

High

Safety Standards:

IEC

Certificate:

ISO9001:2008

Packaging Details:

Packed in carton firstly,and then reinforced with wooden case for outer packing

Supply Ability:

10,000pcs per month

Highlight:

fuse cut out

,

drop out fuse cutout

Product Description

15KV-27KV Silicon Rubber Polymer Fuse cutout

Specifications:

1. 15KV-27KV Composite Fuse cutout
2. Since 1993

Type	Rated voltage(kV)	Rated current(A)	Breaking current(A)	Impulse voltage(kV)	Power-frequency withstand voltage(KV)	Creepage distance(mm)	Weight(kg)	Dimensions(cm)
HPD	15	100	8000	125	45	320	8.5	40× 34× 11
HPD	15	200	10000	125	45	320	8.5	40× 34× 11

Enviroment:

Temperature: -40 - 40

Height: Don't exceed 1000m

Wind Speed don't exceed 35m/S

Earthquake Intensity don't exceed 8 degree

Don't Applying Site: Burning and exploding Site

Quake and Impaction Site

Material:

1). Silicon Rubber for sheds/housing

2). Glass-fiber reinforced epoxy resin rod(ECR type)for core

3). Hop dip galvanized cast steel for metal fittings

4). 5000hours aging test.

5). IEC standard.

6). ISO9001 and ISO14001 manufacturer.
