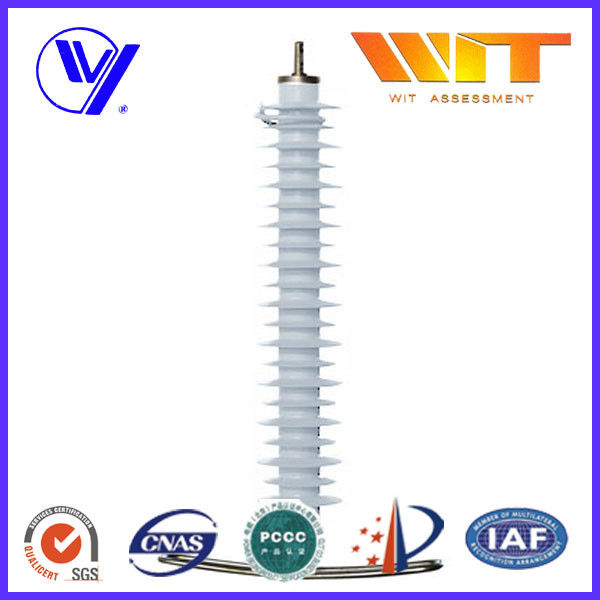

Safety Polymeric Transmission Line Surge Arrester With External Series Gaps

Brand Name:	YONGDE
Model Number:	YH10CX-96
MOQ:	1pcs
Price:	negotiation
Payment Terms:	T/T or western Union or L/C or PayPal
Supply Ability:	15,000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang,China(Mainland)

Certification:

ISO9001/KEMA

Type:

Metal Oxide Surge Arrester

Housing:

Polymeric

Rated Voltage:

96KV

Nominal Current:

10KA

Accessory:

Bracket,Insulating Cap,Cooper Lead,Insulator,Hoop

Purpose:

Over-Voltage Protection

Color:

Red Or Gray

Packaging Details:

carton

Supply Ability:

15,000pcs per month

Highlight:

transmission line arresters

transmission line lightning protection

Product Description

Safety Types of Lightning Arrester , Transmission Line Type Lightning Surge Arrestor

Description:

42-75kv Main features of Surge arrester with external series gaps (for transmission line protection)
With smooth volt-second characteristic curve. Good insulation coordination and protective characteristics.
The electrical frequency withstand voltage is high in discharging gap, high reliability, low allocated voltage, minimum aging phenomenon.
Tube-like structure, injection hole to the side, overall injection molding polymer housed, no internal air gap, the core columns is encapsulated independently, with better air-proof performance than the other tubing products.
The injection hole to the side with a pressure release function.
The flow capacity of core component zinc oxide varistor reaches 100kA.
Good anti-fatique behavior with Polymer Housed products and a CTI level of six. Creepage distance meets the requirements of III level heavy pollution.

Applications:

1. Distribution networks

2. Transmission line

3. Substation

4. Railway power station

5. Alternator and electromotor

Specifications:

Type	Nominal System Voltage	Rated Voltage	Minimum Reference Voltage under 1 mA DC	Residual voltages at steep impulse current		Residual voltages at lightning impulse		1.2/50 Impulse Discharge Voltage kV< =(+)	Power Frequency Withstand Voltage	4/10 μ S High Current (KA)	2mS current /A
Type	Nominal System Voltage	Rated Voltage	Minimum Reference Voltage under 1 mA DC	5kA	10kA	5kA	10kA	1.2/50 Impulse Discharge Voltage kV< =(+)	Power Frequency Withstand Voltage	4/10 μ S High Current (KA)	2mS current /A
YH5CX-42/120	35	42	60	138		120		240	82	100	400
YH5CX-51/134	35	51	73	154		134		240	82	100	400
YH10CX-51/134	35	51	73		154		134	250	82	100	500
YH5CX-75/218	66	75	108	246		218		400	147	100	400
YH10CX-75/218	66	75	108		246		246	400	147	100	500
