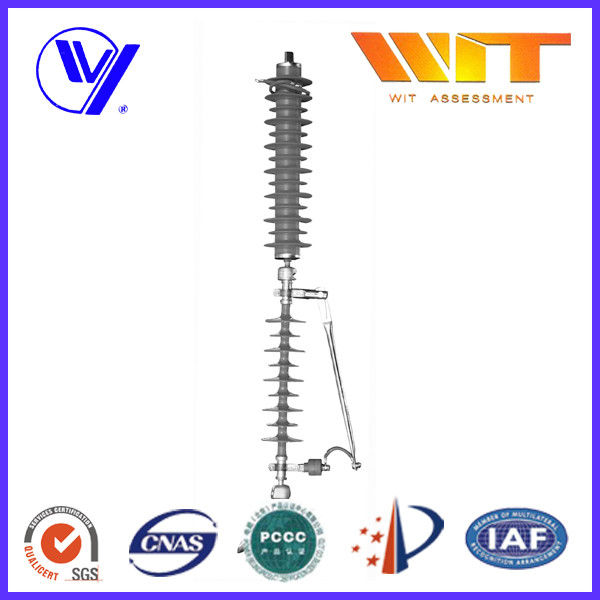

36KV Ploymeric Surge Diverter for Transmission Line Lightning Protection

Product Details

Place of Origin: Zhejiang,China(Mainland)

Brand Name: YONGDE

Certification: ISO9001/KEMA

Model Number: YH10W5-36

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: carton

Delivery Time: 21days per container

Payment Terms: T/T or western Union or L/C or PayPal

Supply Ability: 15,000pcs per month

Get Best Price
Highlight:

line surge arrester

,

transmission line arresters

Type:
Metal Oxide Surge Arrester
Material:
Silicon Rubber
Rated Voltage:
36KV
Nominal Current:
10KA
Accessory:
Bracket,Insulating Cap,Cooper Lead,Insulator,Hoop
Function:
Over-Voltage Protection
Color:
Customized
Type:
Metal Oxide Surge Arrester
Material:
Silicon Rubber
Rated Voltage:
36KV
Nominal Current:
10KA
Accessory:
Bracket,Insulating Cap,Cooper Lead,Insulator,Hoop
Function:
Over-Voltage Protection
Color:
Customized
36KV Ploymeric Surge Diverter for Transmission Line Lightning Protection

Transmission Line 35KV Ploymeric Surge Diverter with Leave Device



Description:



35~220kv Main features of Surge arrester with external series gaps (for transmission line protection)
With smooth volt-second characteristic curve. Good insulation coordination and protective characteristics.
The electrical frequency withstand voltage is high in discharging gap, high reliability, low allocated voltage, minimum aging phenomenon.



Applications:



1. Distribution networks

2. Transmission line

3. Substation

4. Railway power station

5. Alternator and electromotor



Specifications:



Type YH10W5-36/98
Rated voltage---------kV 36
MOCV ----------------kV 29
Nominal Current-------kV 10
Residual voltage of steep impulse----at 5kA(kV) 106
8/20µS Residual voltage of lightning impulse current kV(Peak value)-----at 5kA(kV) 98
Residual voltage of switching impulse current kV (peak value)----at 1kA (kV) 75
1mA D.C reference voltage (kV) 51
Line discharge level 1
2mS long duration impulse current A 400
4/10µS High current impulse kA 100
Lightning impulse withstand kV 200
Power frequency voltage withstand(dry/wet)kV 70
0.1S TOV--------------kV 43.2
1S TOV----------------kV 41.4
10S TOV---------------kV 39.6
1200S TOV-------------kV 36
Creepage distance ----mm 1148
Material employed in series non-linear resistor Zinc Oxide
